2020 (only*) Pro XP Turbo two-seat and 4-seat versions. Stock or oversized tires, adjustable kit.
The introduction year for the Pro XP turbo model. A new chassis, new HP and new clutches that are different from previous turbo RZR models.

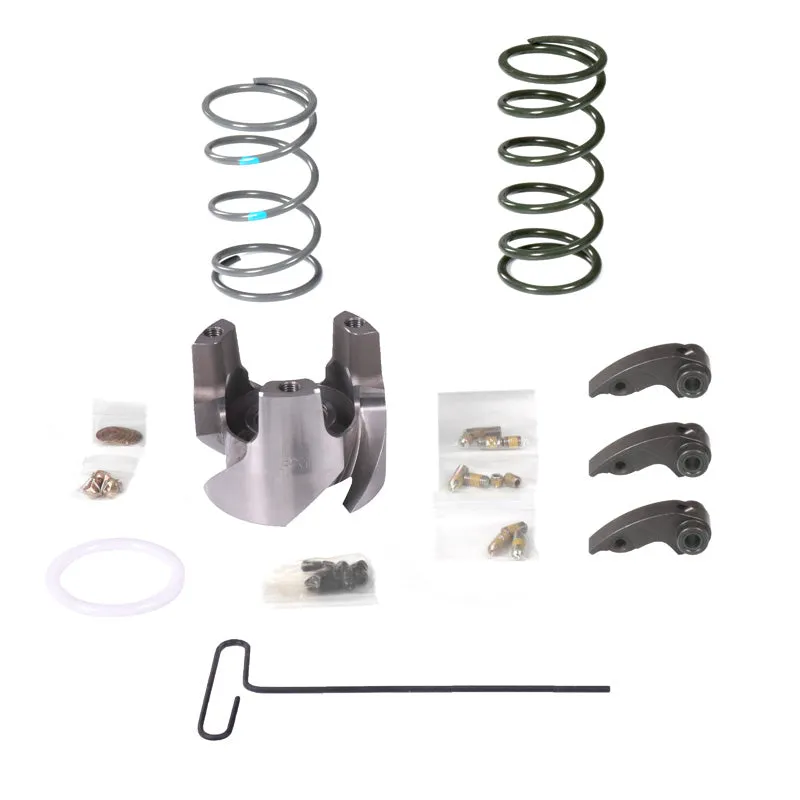

The 2020 Pro XP is a great platform but did have some known issues that developed on initial production models. The original released set up had a fairly weak secondary spring, the factory later supplied a new updated secondary spring that was slightly better to customers but the vehicle still exhibited belt slippage, especially at higher speeds (starting late 2020, Polaris also supplied complete new primary clutches on a recall for certain ones that had specific defects so it is good to ensure that yours has been updated if necessary). This clutch kit offers improved performance, better belt grip, longer belt life, and adjustability to be able to better calibrate the clutching for different tire sizes and situations. Improved back shifting of the belt when the vehicle senses load to prevent slippage. Included are new primary and secondary springs, new forged steel secondary helix, and a set of adjustable flyweight lever arms.
The adjustable flyweights in this kit were built specifically for this application.
Proper flyweights have a bushing. The factory stock weights have a bushing (some aftermarket does not). It is critical to not only have a bushing, but a good bushing. When a flyweight comes under load at higher rpm, it needs to pivot freely on the pin and thus not stick to the pin and pivot the pin in the aluminum clutch housing. The Dalton flyweights in this kit have a superior bushing material, and this bushing has been proven in many high HP endurance applications in our other kits, including the Baja 1000, etc.
The Dalton “Quick Adjust” flyweight allows you to fine-tune clutching calibration (add or subtract grams) without even removing the flyweights from the drive clutch. The flyweights also have a hardened steel thrust washer on each side which allows for more fluid motion of the weight, and prevents the flyweight from grinding against the aluminum housing of the clutch. Improved wear and better clutch action is the result.
Both clutches must work together. This kit contains a helix that was necessary, and designed to work with the secondary spring and primary setup provided with the rest of this kit. The provided instruction manual tells you exactly how to set up the flyweights for different tires and situations.
